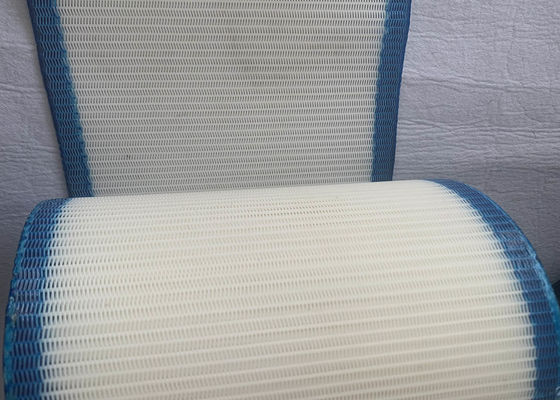

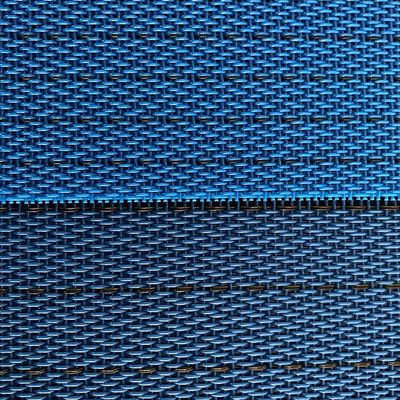

Single-filament polyester spiral mesh belt filter dryer belt for food industry made in China
Polyester screen provides a wide range of woven drying fabrics, ensuring uniform and efficient drying of paper sheets by promoting efficient and mass transfer heat transfer. The basic design of our drying machine fabric is single-layer, 1.5-layer and double-layer woven fabric.
By category, polyester woven drying fabrics can be divided into one-layer and half-layer woven drying fabrics, double-layer woven drying fabrics, round yarn woven drying fabrics, flat yarn woven drying fabrics, and double-warp flat yarn woven drying fabrics.
Round yarn is a type of woven drying fabric: its surface is smooth and stable, with a long service life. It is mainly used to produce various cultural papers, printing papers, writing papers, packaging papers, paperboard papers, corrugated media, and can also be used in the drying parts of other industries.
Flat yarn is a woven and dried fabric: it uses the rectangular cross-section of polyester yarn as the warp yarn. The frame of flat yarn is small and the seams are long, so the fabric surface is smoother than that of round yarn. Fabric and paper markings are lighter, more stable and have a longer service life.
Flat yarns are woven drying fabrics. Double-warp flat yarns are woven drying fabrics, suitable for the first few drying cylinders in the drying section. They can produce various high-quality papers suitable for medium and high-speed paper machines.
PFM screen conveyor belts are also used for further drying applications, such as drying of sewage sludge, nonwoven fabrics, wood shavings and food.
According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half are suitable for drying papers below 70g.
4-shed double layer fabric is suitable for drying papers above 70g.
Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.
24504/22504/20654/4106 for multi-cylinder paper machine, due to higher permeability, generally used in the latter part of the paper machine dryer, the production of paper more than 70 grams 4106-2/18688/16904 generally used for multi-cylinder paper machine, the first three groups of paper drying, high-grade paper.
Polyester Filter Screen For Tailings Disposal
Polyester filter screen is extensively used for transportation and filtration or separation applications for tailings disposal, fruits, vegetables, foodstuff, waste water treatment, in municipal plants, private plants, etc.
| Weaving Type |
Model |
Thread Diameter |
Density(No.s/cm) |
Strength ((N/cm) |
Air Permeability (m3/m2h) |
| (mm) |
| Warp |
Weft |
Warp |
Weft |
| 2-shed plain weaving |
05802 |
0.75 |
0.8 |
4.7-5 |
4.8-5 |
940 |
20000 |
| 05102 |
1 |
1 |
4.7-5.2 |
4.3-5 |
1600 |
15000 |
| 06702 |
0.7 |
0.7 |
8 |
7 |
1600 |
11000 |
| 07102 |
0.7 |
1 |
6.6-7 |
4.3-4.6 |
1100 |
15000 |
| 08552 |
0.55 |
0.55 |
7.5-8 |
8.5-9 |
850 |
850-6500 |
| 09452 |
0.45 |
0.45 |
10 |
8.6 |
1600 |
16000 |
| 09502 |
0.5 |
0.5 |
8.5-9 |
10-10.5 |
750 |
10000 |
| 12502 |
0.5 |
0.5 |
13.5 |
8.5 |
1800 |
6500 |
| 3shed plain weaving |
8603 |
0.5 |
0.6 |
10 |
9 |
1600 |
14000 |
| 8903 |
0.9 |
0.9 |
7.8-8 |
5-5.5 |
2100 |
7500-8500 |
| 7803 |
0.7 |
0.8 |
8 |
8 |
1600 |
10000 |
| 20353 |
0.3 |
0.35 |
22 |
14.5 |
1200 |
13000 |
Polyester Mesh Belt Data Sheet
| Product Name |
Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size |
Small Medium Large Loop |
| Material |
100% Polyester |
| Applicable Industries |
Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color |
Blue , white and Red |
| Certificate |
ISO9001 |
| Type |
Polyester Dryer Belt
Polyester Sprial Press Filter Belt
|
| Packaging |
Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
-1. Mechanical strength
2. Extremely high heat resistance
3. Resistance to chemical effects
4. Excellent operational performance
5. Durability
6. Personalized manufacturing specifically for processes
Polyester Mesh Belt Packing detail
1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement
-
